TONGGENG |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

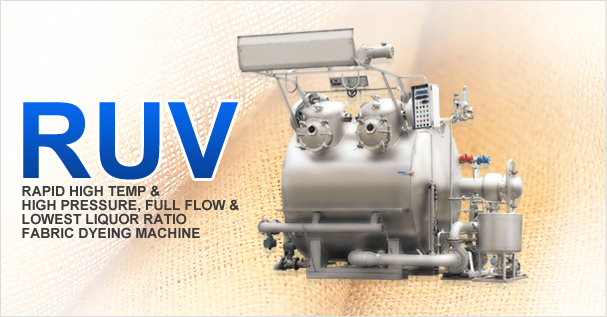

| ADVANTGES Lowest liquor ratio, high running speed, fast dyeing system The lowest liquor ratio 1 : 4 running at high fabric speed (Max. speed can be M / min.) reduce cycle time, fast dyeing for economical energy & reduce cost, suitable for all kind of knitted or Woven fabric & differint kind material EX, Polyester, Nylon, Aceylic, high quality cotton 100%, Rayon, Wool with Lycra, T / C, ......etc. Special foaming collector & fast rinsing system The foaming natural into foaming collector and seperarewith fabric, it can be protect fabric float to tangling and forming dirty problems. With level rinsing, overflow rinsing by time or Cooling water recycle rinsing / CCR (Option), reduce total cycle time(min. about 5hrs for dark color), reduce energy and lowest cost. Lowest tension, full flow pipe saturate device Use overflow Nozzle with Lowest pressure (MIN. 0.2 bar), reduce fabric tension, pilling & yarn sliding, cooperation with full flow pipe increase fabric saturate time for more even dyeing and crease free for more even dyeing and crease free for high quality dyeing.Multi changeable nozzle with Multi gape suitable for fabric weight 50～500 g / M2. Easily operation & full auto or Manual control Machine with full auto control by micro processor, it also can be auto dosing control (supply continuous dosing quality), with quickly fill, drain and hot water tank (Option) to reduce total cycle time, Enhance production yield.. Patent lnside store chamber, multi-function fabric vibration system Special swing device for fabric storage (with patint "W" plate), fabric and liquor separating and running smooth. Main reel and fabric Vibration system speed control by inverter, The fabric is deposited on the trough in orderly fashion theregy increasing the cappacity and reducing fabric tangling problems. Standard loading capacity 200KG / per tube. (For special heavy fabric can be option ober width inside store chamber to reach 250 kgs/per tube ) Advance, compact design Machineoperation height suitable for operator, Simple and safer operation, Space use very limited, Lowest maintance, Lowest cost and high production capacity. RUV SPECIFICATIONS
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
